Catalunya Lego map

I stumbled upon a lego map in twitter and I thought it was quite fun and I should do something similar:

And here’s the result. One with NaturalEarth data colours for height, and another one with a set of official lego colours 😀

..
NOTE from the future:
Since everybody in twitter was to keen to remind me, First the map in EPSG:25831, then in 4236 😀

..

Creating the map

Creating this map is a matter of basic steps, and those are explained in other blogs, so I’ll just link and summarize:

  • Get some elevation data
  • Load in Qgis
  • Create a square grid
  • Run zonal statistics to get raster data into the square grid
  • Create grid centroids
  • Style 😀

The lego colour palette

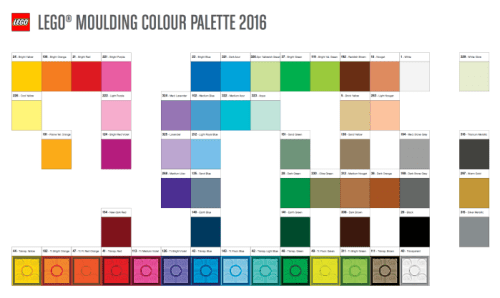

There is a strict colour palette for real lego pieces. My goal was to use the ones described in brickset.com

To do so, Qgis can use the fill by expression capability, and I can write a python script that translates any original cell colour, to a valid Lego colour.

I skipped the palette here, since it gets a tad long:

import math
import colorsys

@qgsfunction(args='auto', group='Custom')
def to_lego_color(v1,v2,v3, feature, parent):
    """
    Gets the closest available lego colour according to hue_distance
    <h2>Example usage:</h2>
    <ul>
      <li>my_sum(r,g,b) -> (r1,g1,b1)</li>
    </ul>
    """
    def hue_distance(c1, c2):
        (r1,g1,b1) = c1
        (r2,g2,b2) = c2

        hls1 = colorsys.rgb_to_hls(r1,g1,b1)
        hls2 = colorsys.rgb_to_hls(r2,g2,b2)
        return abs(hls1[0]-hls2[0])

    def find_fit_color3(r,g,b, palette):
        closest_colors = sorted(palette, key=lambda color: hue_distance(color, (r,g,b)))
        return closest_colors[0]

    LEGO_PALETTE=[here the palette]

    red,green,blue = find_fit_color3(int(v1),int(v2),int(v3), LEGO_PALETTE)

    rgbValue = str(red) + "," + str(green) + "," + str(blue)
    return rgbValue

The script is based in an R,G,B input since my original dataset has this values. It can be easily changed if needed :-).

What this script does is use the HSL space to find the closest color in the palette based on Hue, nothing else.
